 25GBASE-ZR SFP28 25G BIDI 80km Tx1310nm /Rx1270nm Transceiver
SFP 25G BIDI 80km
SFP28 25GBASE-ZR

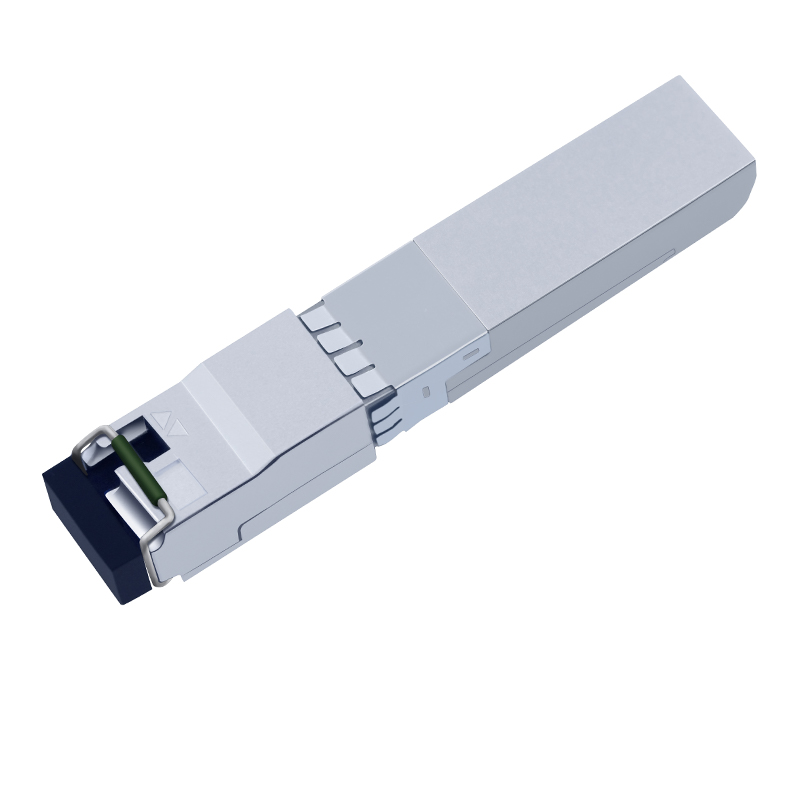

25GBASE-ZR SFP28 25G BIDI 80km Tx1310nm /Rx1270nm Transceiver

SKU: SFP-BL32T5-80DC

Product Highlights

Support data rate up to 25.78125Gb/s

Hot-Pluggable SFP Footprint and Single LC Connector

Up to 80km reach for G.652 SMF

EML laser and Integrated SOA & PIN TIA ROSA

RoHS 6 compliance

Compliant to IEEE 802.3cc, SFF-8472 and SFF-8419

Complies with EU Directive 2015/863/EU

Compliant with SFP+ MSA

Power consumption:2.5W
Temperature Range:0°C ~70°C

Узнать сейчас DATA SHEET

КАТЕГОРИИ ПРОДУКТА
новые продукты

The SFP28 25G BIDI 80km Tx1310nm /Rx1270nm  is a single-channel, Pluggable, Fiber-Optic SFP28 for 25 Gigabit Ethernet and Infiniband EDR Applications. It is a high performance module for short-range data communication and interconnect applications which operate at 25.78125 Gbps up to 80km. They are compliant with SFF-8431, SFF-8432. The transmitter converts serial CML electrical data into serial optical data. The receiver converts serial optical data into serial CML electrical data. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.



Technical Specification

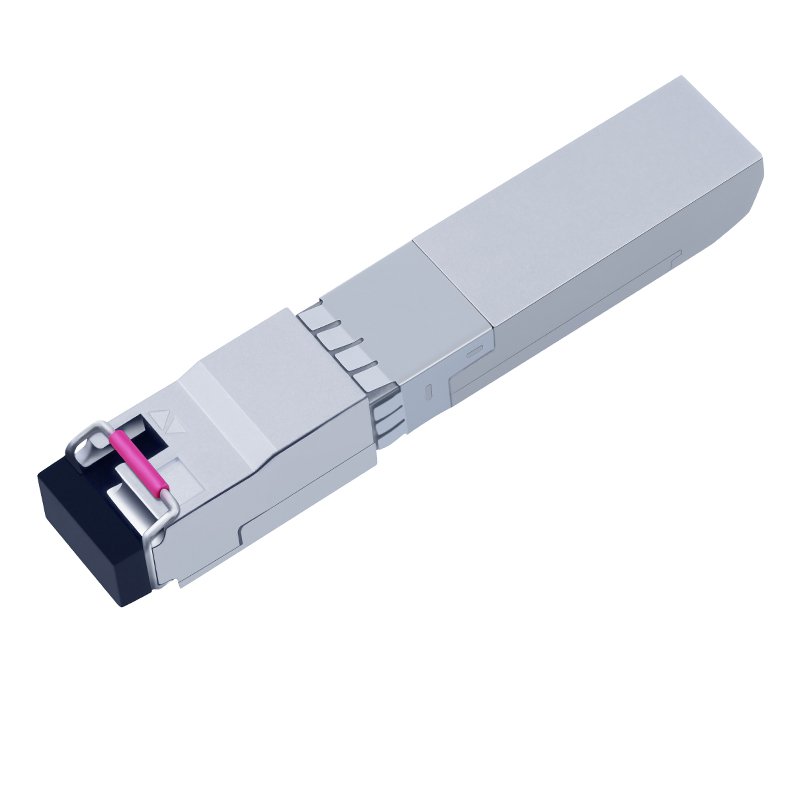

Compatible OEM FIBERTOP Compatible With OEM Part Number(s) SFP-BL23T5-80DC
Transceiver Type BIDI Reach 80km
Wavelength Tx1310nm /Rx1270nm  Form Type SFP+
Speed Description 25G Media SMF
Connector Single LC Extinction Ratio > 8 dB
TX Power 2 ~ 7 dBm Receiver Sensitivity < -24 dBm
 Applications

25Gbps Optical systems

25GBASE-ZR at 25.78125Gb/s

25GBASE-ZW at 25.78125Gb/s

LTE systems Other Optical links

 Environment

Operating:0°C to 70°C

Storage: -40°C to 85°C





Quality Assurance





Quality Certification

FIBERTOP has strict control over all products' quality, including strict qualification audit for material suppliers, comprehensive quality management system and production process control which comply with the certifications and safety standard. Our products accord with industry standard and mainstream quality certification, such as  ISO 9001, CE, RoHS, CE, REACH, FCC, FDA, CB, UL etc.



  • Excellent quality is the foundation of FIBERTOP' s survival and development.
  • Our R&D team are experts with rich  experience in telecom industry.
  • Our material suppliers are first-class manufacturers in the industry.
  • We have the qualification of OEM for first-class system equipment manufacturers.













FIBERTOP provides after-sales service in strict accordance with Chinese Consumer Protection Law & Product Quality Law of the People's Republic of China. The defects liability period is provided for each product based on the materials, workmanship, frequency of use and service life. The return, replacement and repair services are as follows:






Return within 30 days


 replacement up to 1 year


Up to 5 years warranty

  • Warranty process

Provide relevant information(such as order number, product model, product serial number, product label, etc.)→Describe the problems you meet with→FIBERTOP confirms that the product is complete and still in the warranty period→Send the product back to FIBERTOP repair centre.

Note: The warranty peroid of the repair or replacement product is based on the longer time, either the remaining warranty period of the original product or ninety days after repair.



  • Request a Repair

When your FIBERTOP products need repairing (RMA-Return Material Authorization), please contact your sales consultant to provide timely service for you.



  • Free maintenance items

Guarantee repairing in two years:1. Not man made damage;  2. Product quality issues caused by design defects or material problems



  • The following conditions will not be repaired

• Maintenance center judge as non FIBERTOP products;

• The appearance of man-made damage;

• End face damage caused by use;

• Inapplicable items listed in the warranty statement.



  • Warranty description

• FIBERTOP guarantees that all products are subject to strict quality control from raw material procurement to production process. According to the problems raised by customers, if it is confirmed that the defective products are caused by raw materials or production process, FIBERTOP will provide repair or replacement services for free;

• The warranty terms do not cover any damage to the product caused by improper installation, accidental disasters, natural disasters, abuse, misuse, inadequate or excessive power supply, incorrect operation, poor environmental conditions, and any unauthorized disassembly, repair or modification;

• The warranty also does not apply to second-hand or unauthorized resale of products;

• The FIBERTOP warranty only guarantees that customers can enjoy repair and replacement services when they purchase defective or damaged products; FIBERTOP is not obligated to compensate or assume responsibility for module damage and repair needs caused by other equipment in use.

• The warranty does not cover problems caused by third-party software or connected related devices, etc.

FIBERTOP always adheres to the concept of "focus, innovation and progress", and is committed to providing every user with reliable products and enthusiastic services.


  SFP 25G BIDI 80km


    Net Weight
 0.02kg Gross Weight (with package） 0.32kg






Package of 1~50 pieces
  Step 1 Step 2
  Step 3 Step 4

Package of 51~200 pieces
  Step 1 Step 2
  Step 3 Step 4

Package of 201~400 pieces or more
  Step 1 Step 2
  Step 3 Step 4





DELIVERY METHOD



FIBERTOP has established long-term cooperation with major global logistics companies to provide distribution services to more than 200 countries and regions.



Receiving Region Logistics Type Timeliness
Hong Kong, Macao and Taiwan SF 1~2 days
FedEx IP 1~3 days
FedEx IE 4~6 days
DHL 2~5 days
Overseas Regions UPS 1~3 days
FedEx 1~3 days
DHL 2~5 days





Note: 1. Timeliness is the estimated delivery time, some remote areas delivery may be delayed, the specific delivery time shall prevail;



  2. If you need to specify a logistics company, please contact  customer service staff or your sales representative.











FIBERTOP has 20+ years of R&D technology experience and more than 100 successful cases. With rich experience and R&D strength, we have a complete set of  services from the core system design to the compatibility design of SFP transceivers and  the completion of the final product,  we  can definitely satisfy our customers' needs through providing  customized high-performance products and solutions at the first time.



Product customization





Fs_label.svg

Label

Fs_colour.svg

Colour

Fs_model.svg

Model

Fs_length.svg

Length

Fs_function.svg

Function













Scheme Customization







Business





Rate





Distance





FIBERTOP focuses on customer-oriented solutions and provides technical support.



We can optimize the design based on your original solution, and also provide you with a complete network  solution, related products and technical support.
